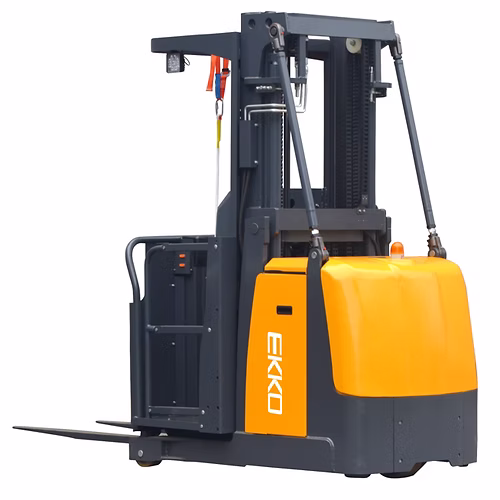

The EKKO EOP70 Electic Mid-Level Order Picker is designed it’s sole purpose to pick your ordersfrom your racking and storage facility rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 2200 lb
- Raised Height 196″ (16.33 ft.)
- Adjustable Forks
- Auxiliary Fork
- Triple Mast
- Curtis Instrument Controller
- EPS (Electronic Power Steering)
- German AC Drive Motor
- Battery 24V/350Ah
- 24V/50A
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Battery Included
- 3 Years Limited Warranty
EOP70 Order Picker 2200lb. Cap., 196″ Lift
SKU: EOP70
| Forklift Description | |
|---|---|
| Model | EOP70 |
| Power unit | Electric |
| Operation | Stand on |
| Rated loading capacity Q (lbs) | 2200 |
| Load centre c (Inch) | c (Inch) |
| Between fork backrest & front wheel x (Inch) | 7.56 |
| Wheelbase y (Inch) | 53.46 |
| Service weight with battery (lbs) | 6600 |
| Wheels type | PU |
| Driving wheel size Φ×w(Inch) | Φ9.84×5 |
| Bearing wheel size Φ×w(Inch) | Φ5.9×3.23 |
| Wheels, number front/rear (x = driven) | 1，/2 |
| Track width b11 (Inch) | 37.8 |
| Lowered mast height h1 (Inch) | 93.11 |
| Lifting height h3 (Inch) | 196" |
| Extended mast height h4 (Inch) | 285 |
| Height of overhead guard(cabin) h6 (Inch) | 89.48 |
| height of seat/stand-on platform h7 (Inch) | 10.67 |
| Additional lift height h9 (Inch) | 30.71 |
| Total lift height h10 (Inch) | 227 |
| Platform lifting height h12 (Inch) | 206.873 |
| Lowered fork height h13 (Inch) | 1.97 |
| Picking height h15 Inch) | 258.01 |
| Overall length l1 (Inch) | 111.41 |
| Body Length l2 (Inch) | 69.29 |
| Overall width b1/ b2 (Inch) | 39.37/145.28 |
| Fork Size s/e/l (Inch) | 1.37/3.93/42.13 |
| Width of fork fixing frame b3 (Inch) | 35.83 |
| Outside fork width b5 (Inch) | 34.33 |
| Min.Ground clearance m2 (Inch) | 1.97 |
| Aisle width for pallets 39.37*47.24 crossways Ast (Inch) | 122.24 |
| Aisle width for pallets 31.5*47.24 lengthways Ast (Inch) | 126.77 |
| Turing Radius Wa (Inch) | 61.81 |
| Travel speed,laden/unladen (km/h) | 8 |
| Lifting speed, with/without load(cabin) (mm/s) | n/a |
| Lifting speed, with/without load(Fork) (mm/s) | n/a |
| Lowering speed, with/without load(cabin) (mm/s) | n/a |
| Lowering speed, with/without load(Fork (mm/s) | n/a |
| Climbing ability, with/without load (%) | 3/6 |
| Brake Type | Electromagnetic brake |
| Drive Motor (kW) | 3 |
| Lift Motor (kW) | 6 |
| Battey, DIN 43531/35/36 A,B,C,no | no |
| Battery voltage/rate capacity (V/Ah) | 24/350 |
| Battery Weight（±5%) (LBS) | n/a |
| Type of drive control | Type of drive control |
| Noise level (dB(A)) | ≤75 |
