The EKKO EK18RF-Li Stand-up Rider Forklift is designed for use for all of your material handling demands. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 4000 lb
- Raised Height 216″ (18ft)
- Side Shift
- Adjustable Forks 9.4-35.6″
- Fork Length 45.3“
- Hydraulic Steering
- Curtis Instrument Controller
- German AC Drive Motor
- Battery 48V/350Ah Lithium
- Solid Cushion Load Tires
- Polyeurathane Drive Tires
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 440V three phase
- 3 Year Limited Warranty

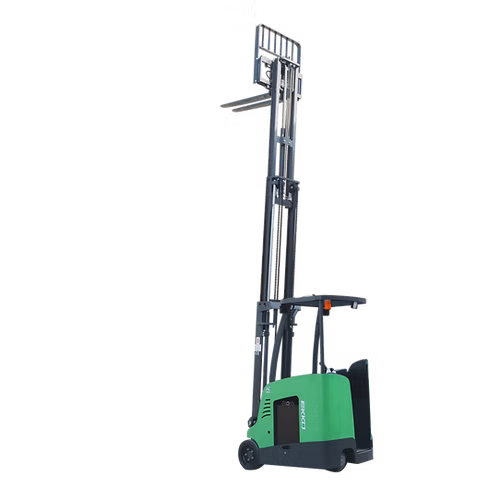

EKKO EK18RF-Li Stand-up Rider Forklift
SKU: EK18RF-Li

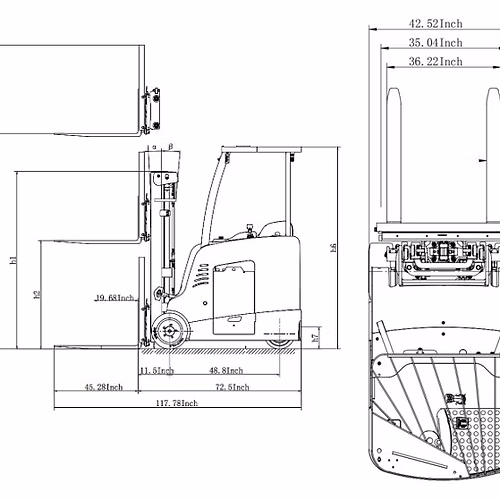

| Forklift Description | |
|---|---|
| Model | EK18RF-Li |
| Power unit | Electric |
| Operation Type | Rider |
| Loading capacity Q (LBS) | 4000 |
| Load center c (Inch) | 24 |
| Axle centre to fork face x (Inch) | 11.5 |
| Wheelbase y (Inch) | 48.8 |
| Service weight with battery (LBS) | 7940 |
| Wheels type | Solid wheel |
| Driving wheel size Φ×w(Inch) | 16×7-10.5（15.98*7.01*10.51） |
| Bearing wheel size Φ×w(Inch) | 13.5×5.2 |
| Wheels, number front/rear | 1×/2 |
| Track width b10 (Inch) | 35.04 |
| Mast/fork carriage tilt, fwd/bwd a/b (°) | 3/5 |
| Lowered mast height h1 (Inch) | 91.77 |
| Free lift height h2 (Inch) | 61.34 |
| Lift height h3 (Inch) | 216.54 |
| Extended mast height h4 (Inch) | 248.43 |
| Height of overhead guard (cabin) h6 (Inch) | 90.08 |
| Height of seat/stand-on platform h7 (Inch) | 9.06 |
| Overall length l1 (Inch) | 117.78 |
| Length to fork face l2 (Inch) | 72.52 |
| Overall width b1/ b2 (mm) | 42.52/42.13 |
| Fork dimensions s/e/l (Inch) | 1.58/4.72/45.28 |
| Width of forks b3 (Inch) | 36.22 |
| Ground clearance under mast m1 (Inch) | 2.95 |
| Min.Ground clearance m2 (Inch) | 3.86 |
| Aisle Width Requirment Ast (FT) | 10.5 |
| Min.Turning radius Wa (Inch) | 58.5 |
| Travel speed,laden/unladen (km/h) | 12/13 |
| Lifting speed, with/without load (mm/s) | 250/400 |
| Lowering speed, with/without (mm/s) | 240/258 |
| Climbing ability, with/without (%) | 6/10 |
| Service brake | Hydraulic |
| Drive motor, 60-minute rating (kW) | 6 |
| Lift motor rating at S3 15% (kW) | 7.7 |
| Battery according to DIN 43531/35/36 A,B,C,no | no |
| Battery voltage/rated capacity (V/Ah) | 48V/350Ah Lithium |
| Power consumption VDI (mm) | 38*18.1*29.53 |
| Type of drive control | AC |
| Noise level at operator‘s ear (dB(A)) | ≤70 |
| steering type | Hydraulic steering |
